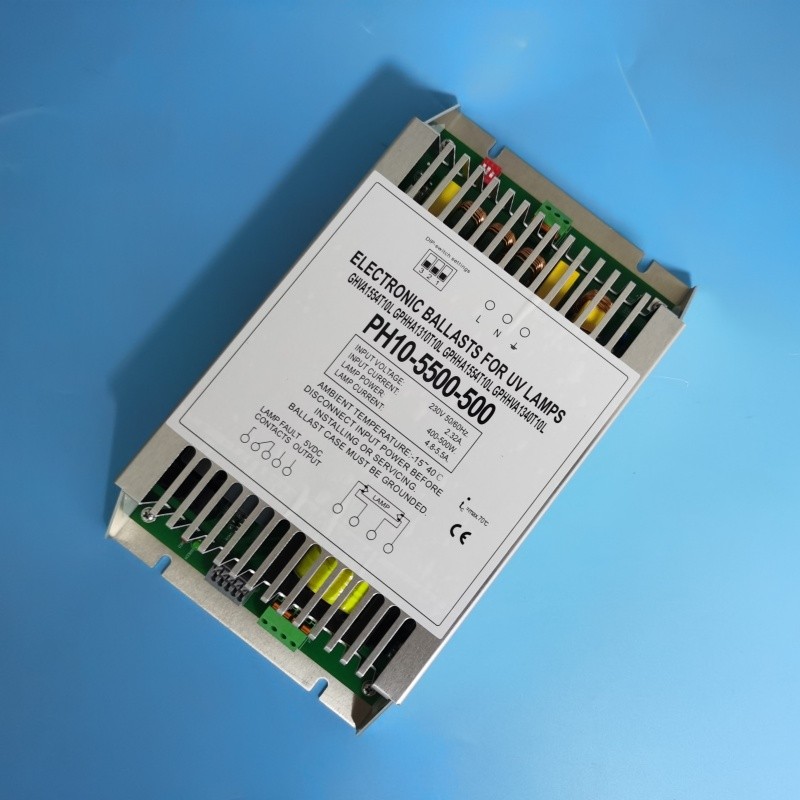

High quality electronic ballast PH10-AL-500 for 500W UV germicidal lamps

Input Character

Rated Input Voltage：220V/230V

Rated Frequency：50/60Hz

Effective Input Voltage：198~264V

Max. Input Power：523W

Max. Input Current：2.32A@230V

PF：>0.98

Efficiency η：>90%

Output Character

Loaded Lamp：GPHHA1554T6L，NNI300/147XL，

TUV325WXPT，GPHA1554T6L

TUV335W XPT

Output Current：1.8A~3.0A（Programmable）

Start：Preheat Start, suitable for switching on&off frequently.

Preheat Current 1.5A~3.0A（Programmable）

Preheat Time 5S~24S（Programmable）

Lamp Status Indication Function：Switch ON-OFF (Dry contact); can be connected with remote device; used to feedback lamp tube operating status

Standard：

IP： IP20

Certification：

Working Condition

Environment Temperature：-5℃~40℃

Humidity：5%~85%

Structure

European terminal structure

Shell：Aluminum

Mounting Distance：238mm

Size：250*141*65mm，Net Weight：1.2KGS

Package Size：510*300*245mm3，Q’ty/CTN：9pcs,

Gross Weight：13.5KGS

Attention

• Do shut off the power before installation or replacement.

• Wire Diameter as 0.5~1.0mm2，stripping length as 8~10mm

• Distance between the ballast with lamp should be within 5 meters.

• Wire Diameter as 0.5~1.0mm2，stripping length as 8~10mm

• Distance between the ballast with lamp should be within 5 meters.

Warranty Period

Within 2 years if the temperature of outer surface is within 70℃.
